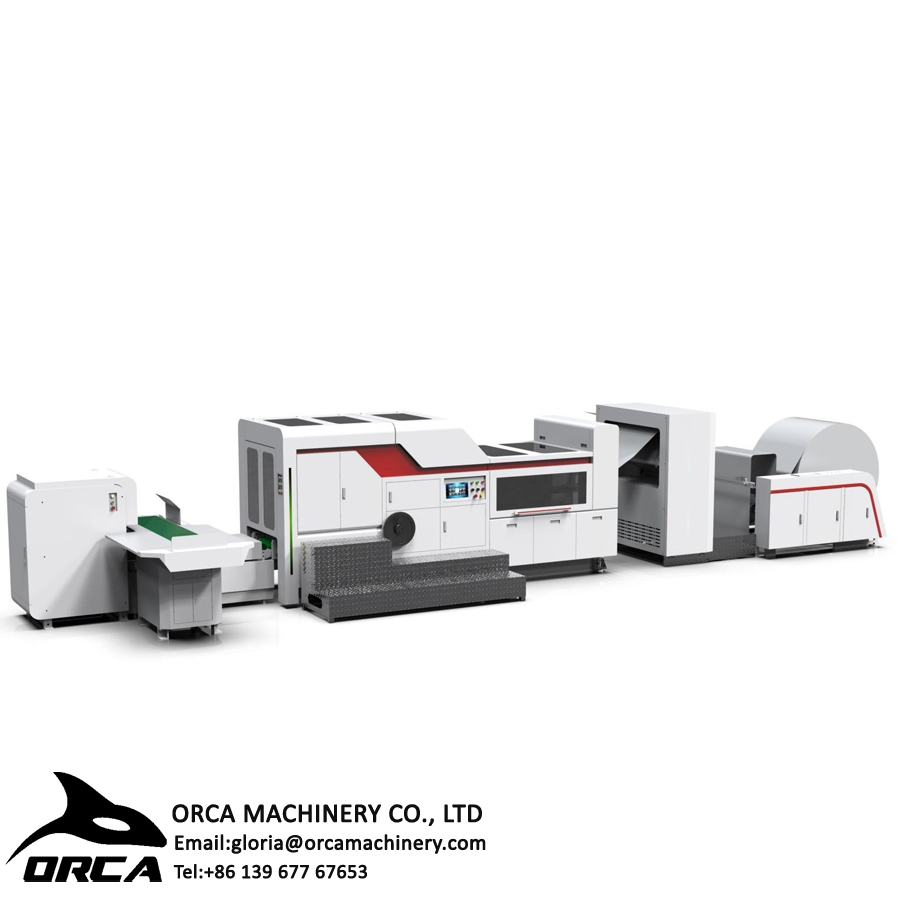

CY-280/330/450 Square Bottom Paper Bag Making Machine is used for paper, food paper bag production.
| Model | CY-330 |
|---|---|
| Machine Size | 10500x3700x1900mm |
| Weight | 8000kg |

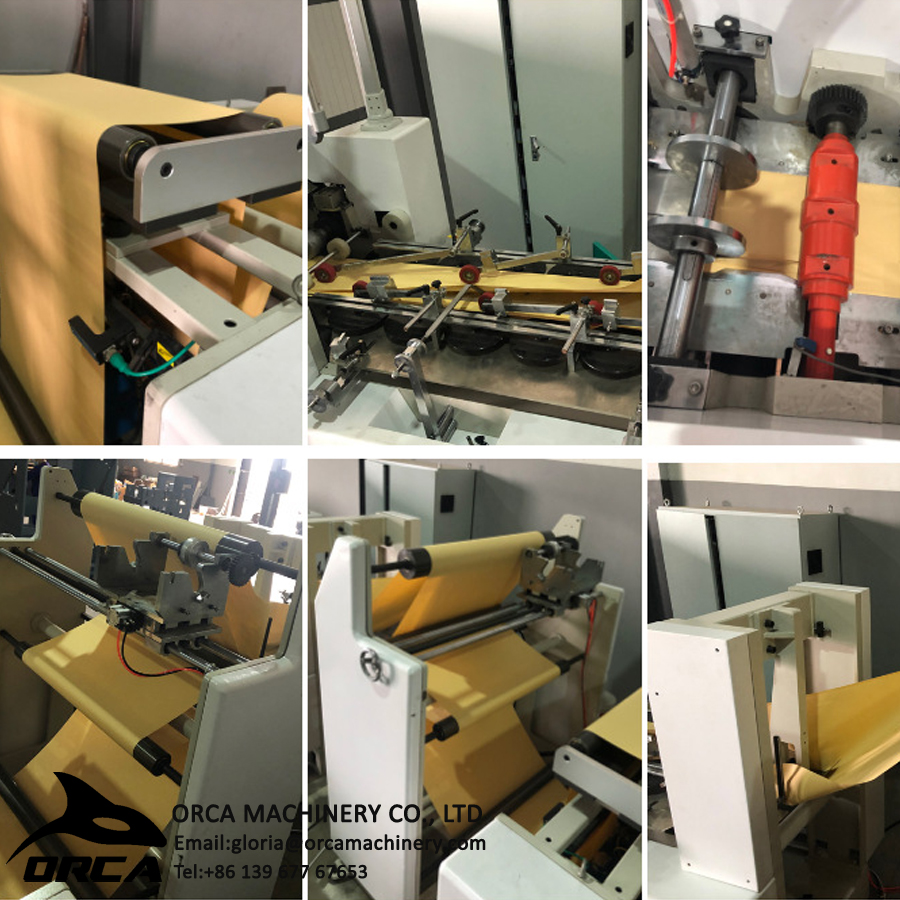

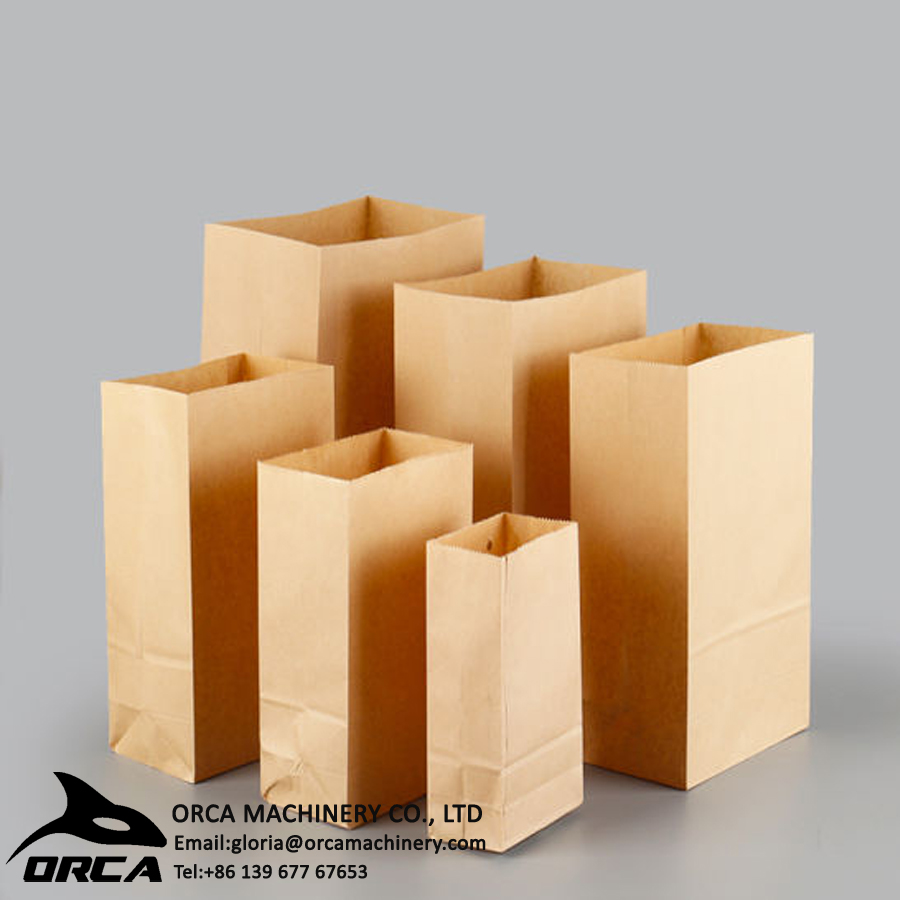

CY-280/330/450 Square Bottom Paper Bag Making Machine is used for paper, food paper, etc. It consists of automatic center gluing, printing bag tracking, raw material into a tube, fixed-length hole, bottom indentation, Folding the bottom, gluing the bottom, forming the bottom of the bag, and finishing the finished bag at one time. Effective and more stable, it is the production of various bags, snack food bags, bread bags, dried fruit bags, and other environmentally friendly paper bag equipment.
| Model | CY-330 | |
| Paper Roll Length | 270-530mm（C） | |
| Paper bag length | 225-450mm （L） | |
| Paper bag width | 150-330mm （W） | |
| Paper bag bottom width | 60-160mm （H） | |
| Paper thickness | 60-160g/m2 | |
| Machine Speed | 30-160pcs/min | |
| Paper roll width | 450-1010mm | |
| Roll paper diameter | 1200mm | |
| Diameter of paper core | 76mm（3”） | |
| Machine power | 3phase,380v ,12kw | |
| Machine weight | 8000kg | |
| Machine size | 10500x3700x1900mm |
