Automatic heat sealing paper box fold and form machine is for making One side is the Film, another side is coated side paper cards.

Additional information

Speed	15-25pcs/min, 30-40pcs/min

Product Detail:

Characteristic:

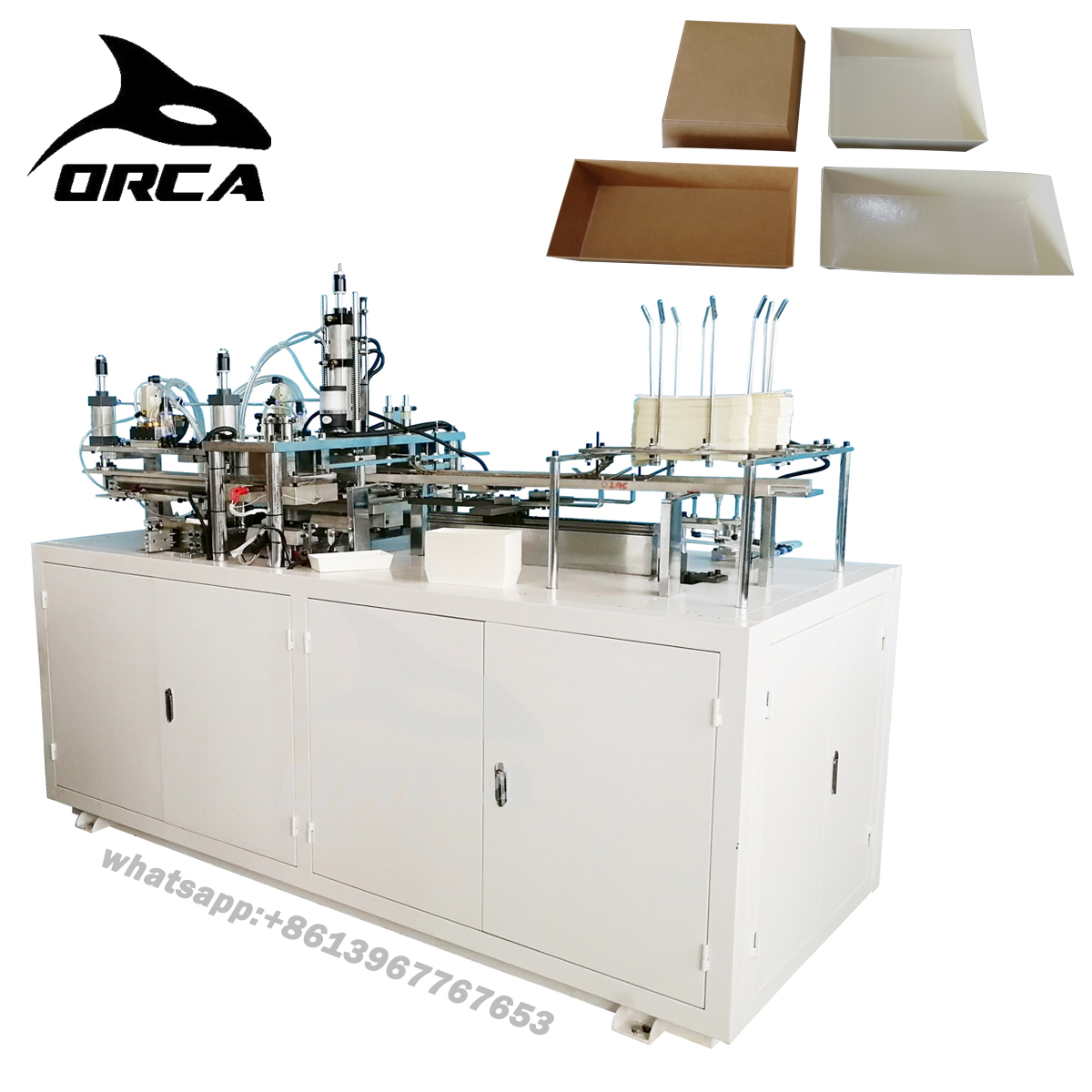

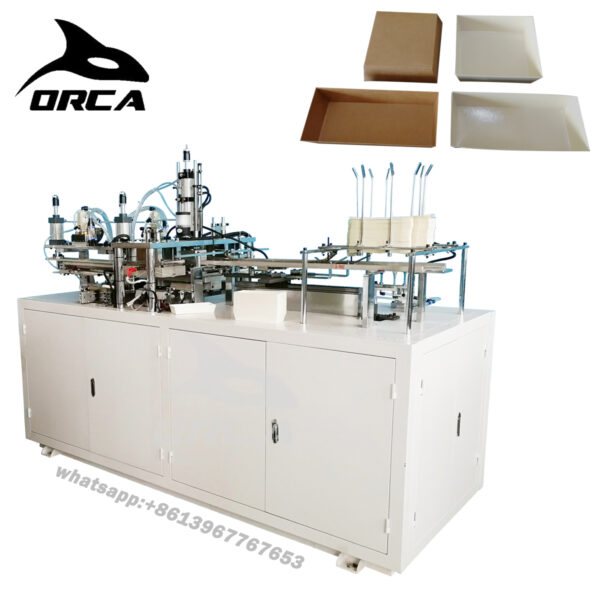

Automatic heat sealing paper box fold and form machine(we have single and double station for different production capacity needs):

pre-forming paper card are white paper cards, kraft paper and so on，One side is the Film, another side is coated side，Heating through the mold，Let PE film melt，molding in the mold through bonding，The principle is different from glue forming machine，product molding not only beautiful but also practical，As a food container，meeting the current demands of health and environmental protection.

Technical parameters:

Production capacity:	15-25pieces/min(Actual production is subject to product size)
Maximum size:	200mmX130mmX40mm
Max Paper Convey Width:	280mmX210mm
Suitable Material:	200-350g/m2 (PE Coated paper)+PP laminated/PET laminated
Total Power:	2.5KW
Total Weight:	1T
Overall Dimension:	2100（L）x 1100(W) x1400 (H) mm
Working Air Source:	Air pressure 0.5Mpa (Need to buy compressor)
